WORM LINKED SCANNER
Description

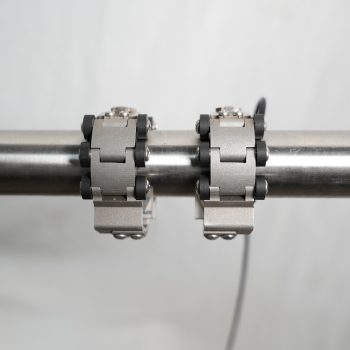

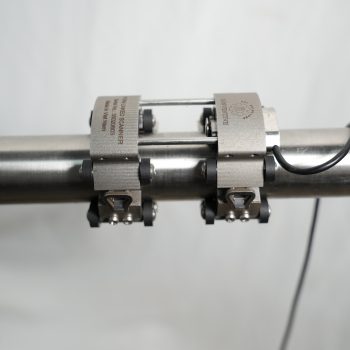

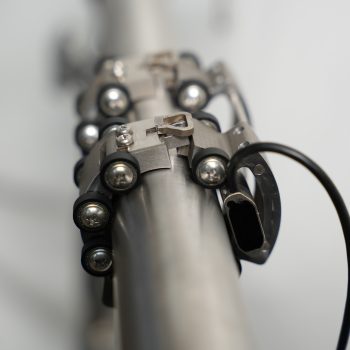

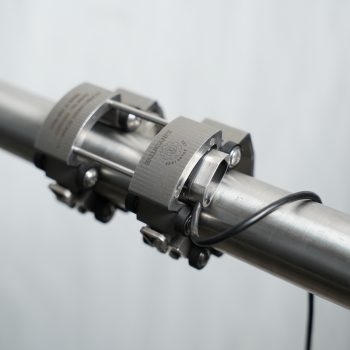

Worm Linked Scanner is specifically designed for inspecting small pipes, facilitating easy examination of circumferential welds with minimal scanning distance. Constructed from stainless steel, it features a magnetic encoder that ensures the probe operates smoothly and steadily.
The simplified probe holder design saves time when switching and adjusting probes and wedges, making it versatile for various pipe diameters ranging from 1 to 6 inches. The Worm Linked Scanner is optimized for efficient scanning distances, enhancing the defect detection capabilities of PAUT methods. It is particularly well-suited for fin-fan pipes in thermal power plants and heat exchangers.
Made in Vietnam
2 year warranty
Specification
- Pipe Range, Circumferential: 1 inch to 4 inches
- Magnetic Encoder (included): 1
- Probe Holding Capacity: 2 Phased array probes ( A15 or A25)
- Umbilical Length: 3 m (9.8 ft)
- Inspection Surface: Ferrous or Non-Ferrous
- Maximum height 25mm
- Maximum scanning distance: 35mm
